AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen

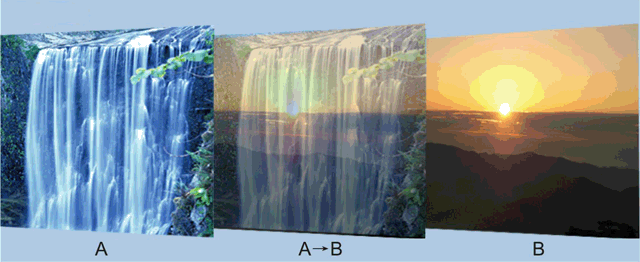

Seamless Switching,Fade-in / Fade-out
3 display modes, and seamless switch between these modes
Unrestricted HD Picture-in-Picture (PIP) & Picture-by-Picture
Independent H & V Scaling Ratios
HDMI 1.3a with HDCP, HD 1080p input
SDI. HDSDI(1080i) Input

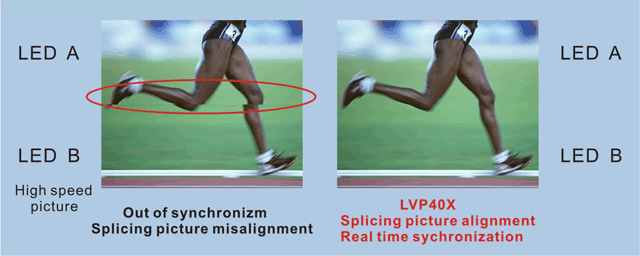

Frame synchronous technology, no miss alignment or delay between two adjacent image output

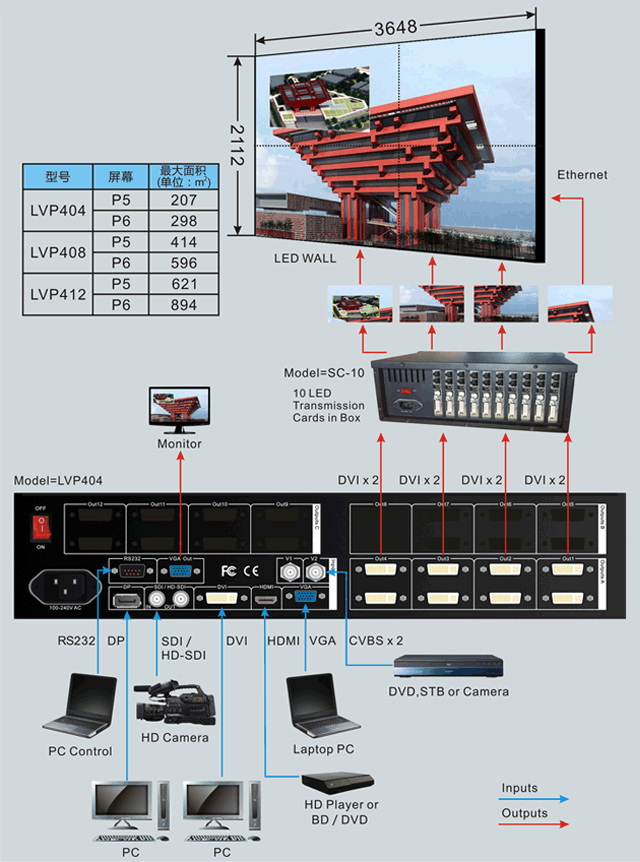

Multi-machine in parallel, 4x4 in parallel can connect 7680 x 4320 LED screen
Fast 64-level output brightness adjustment
Easy setup and adjustment through keys on the panel
Press keys on frontal panel to directly select 7-channel input signal source,
including: 1 x SDI/HDSDI 1 x HDMI(with HDCP) 1 x DVI
1 x VGA 1 x DP(DisplayPort) 2 x CVBS
