Fixed Indoor LED display
300×213
Fixed Indoor P10 HD LED Display
  PDF:
Features
Specification
Pixel Pitch 10 mm
Pixel Density(m²) 10000
Pixel Composition 3-in-1 SMD
Cabinet Size 960 mm*960 mm*108 mm
Cabinet Resolution 96*96 = 9216
Number of Modules(One Cabinet) 3*6= 18
Cabinet Material Iron
Number of Power(One Cabinet) 5 V/40 A/3
Cabinet Net Weight 55 kg/Sq. m.
Cabinet Gross Weight 60 kg/Sq. m.
Package Size 1040 mm*1140 mm*316 mm
Module Resolution 32*16
Module Size 320*160*35(mm*mm*mm)
Module Weight 0.375 kg
Power Consumption (Single Module) 5 V, 21.5 W
Brightness 1400 cd /Sq. m.
Gray Level 4096
Color 16700000
The Best Viewing Angle H: 120°, V: 120°
The Best Viewing Distance 10 m~200 m
Scan Mode 1/8; Real
Refresh Rate (Max) 4000  Hz
Input Voltage 110 V/60 Hz, 220 V/50 Hz;
Max Power Consumption 416 W/Sq. m.
Average Power Consumption 250 W/Sq. m.
Lifespan 50000 h
Operating Temperature -20°C~+50°C
Operating Humidity Range 10%RH ~ 90%RH
Front Ingress Protection Index IP 40
Back Ingress Protection Index IP 40

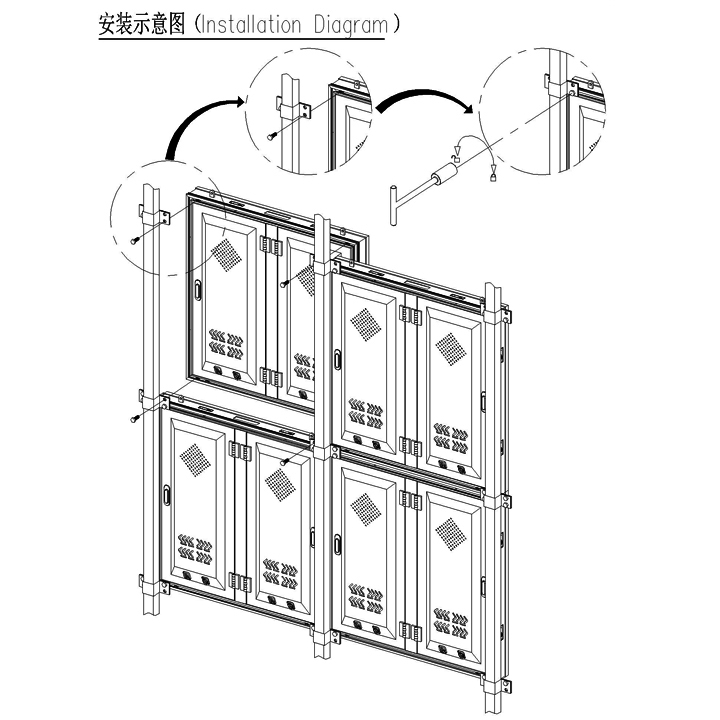

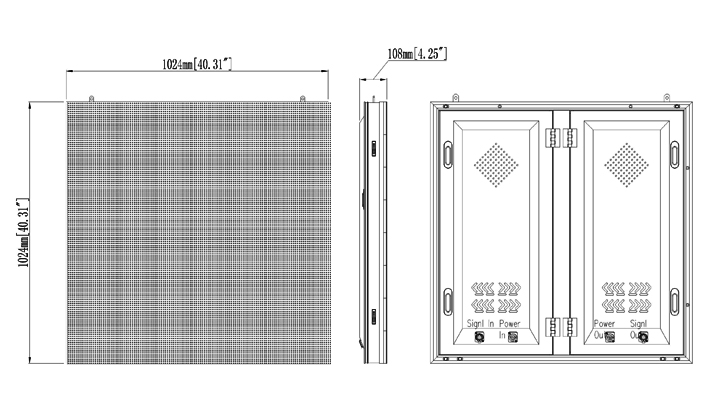

Structure

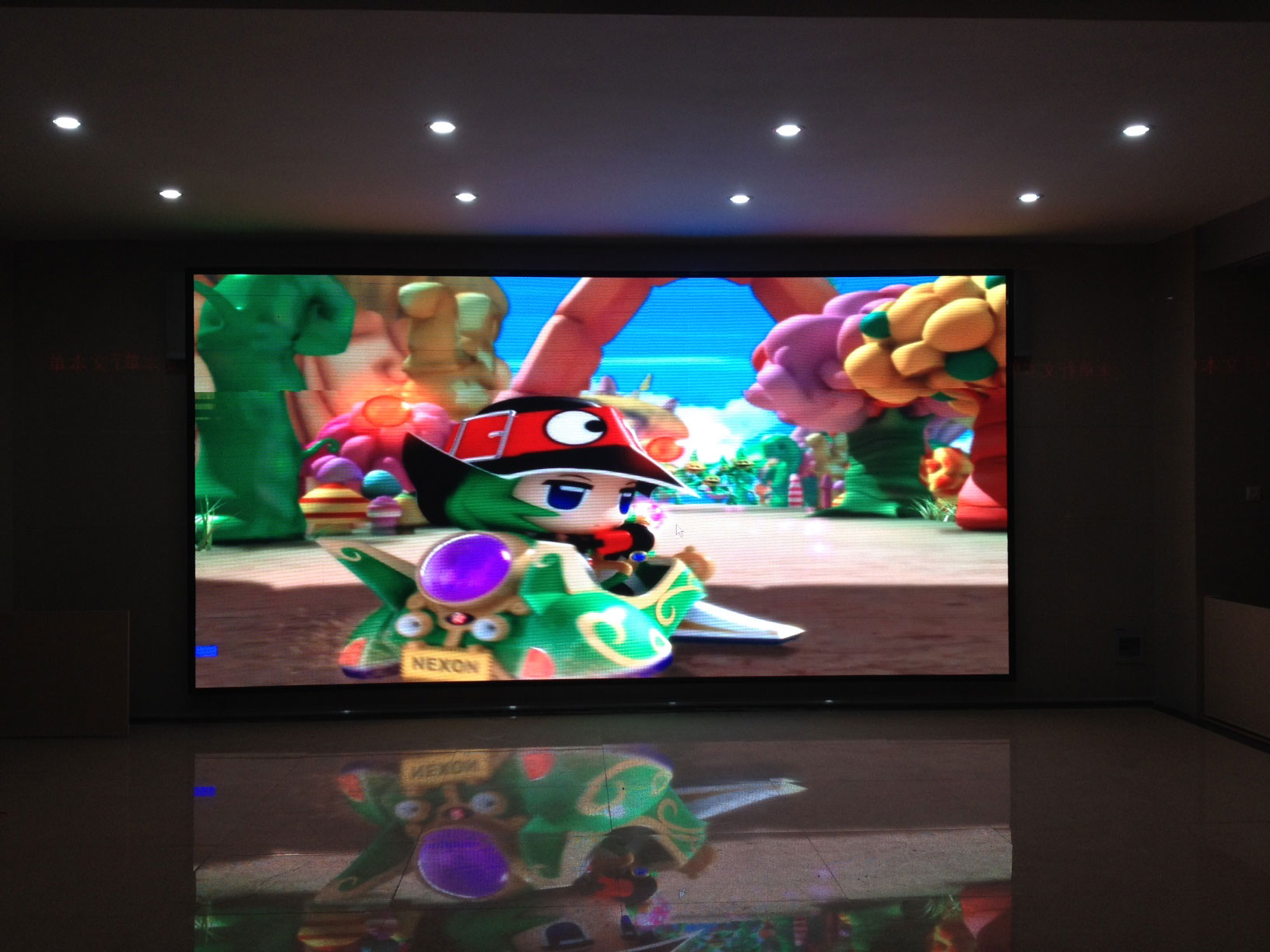

Project Case
