Outdoor LED Curtain
300×213
Outdoor Curtain P31.25 Transparent LED Curtain
  PDF:
Features

Excellent performance, the first option for outdoor advertising


Our transparent outdoor LED Curtain, widely used as the exterior walls of buildings, stadiums, landscapes and billboard etc.

Specification
Pixel Pitch 31.25mm
Type DIP(3 in 1)5050
Chip parameters Red (625-630nm) IV:(800-1000mcd)
Chip parameters Green (515-520nm) IV:(2000-2500mcd)
Chip parameters Blue (465-470nm) IV:(400-600mcd)
Arrangement 2 / pixel
Cabinet Size 1500×250mm
Pixel Density 1024 Dots/sqm
Cabinet Resolution 48×8 Dots
Transparency >70%
Brightness >6000cd/sqm
Weight 15kg/sqm
Max.Power Consumption 400 w/sqm
Bar Arrangment Horizontal / Vertical
Viewing Angle (H/V) 120(Horizontal), 60(Vertical)
Protection Level(front/back) IP66
Color Temperature Adjustable 4500-25000k
Operation Power AC110-220V±10%, 50/60Hz
Continuous working time >72H
MTBF >10000H
Pixel runaway rate 1/10000(the industry standard)
Operating Temperature -40OC-80OC
Operating Humidity 10%-95%
Gray Scale 16bit
Frame rate >60Hz
Refresh Rate >3000Hz
Correction Support by-point correction
PC Operating System Microsoft Windows 7, XP and Vista
Communication Type Net cable; 3G, WIFI(Sold separately)
Software Nova Studio(HSTV-Nova)
Language Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Inputs DVI, HDMI

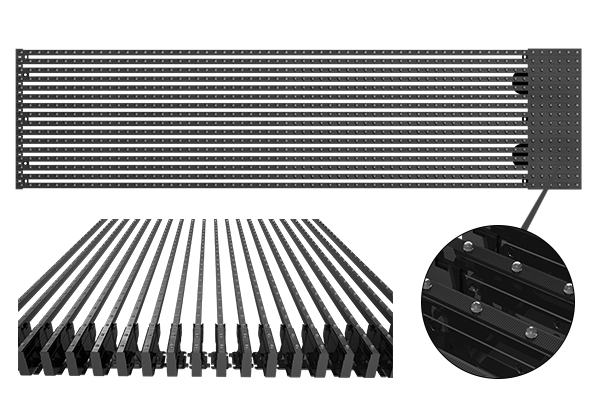

Structure

Using high quality LED chip and IC,the brightness reach to 6000Nits/SQM & the refresh rate reach to 3000HZ


Easy to install and maintain,no damage to the wall.

Our P31 outdoor curtain < 18Kg/SQM
Traditional Outdoor curtain  ≥22kg/m2
Traditional Outdoor LED cabinet ≤100-120kg/m2

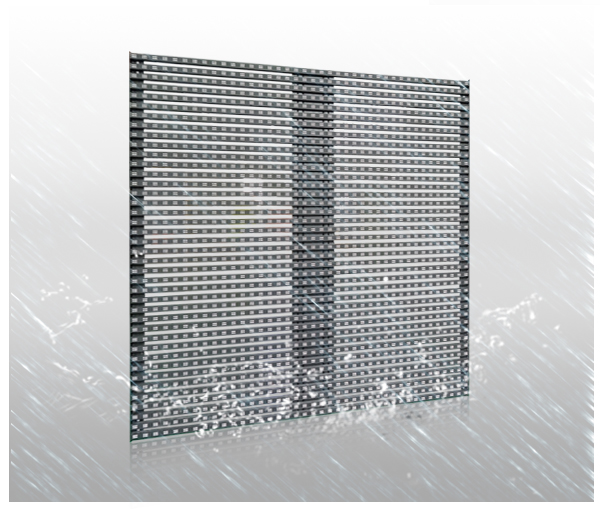

   IP66 Waterproof




Easy to installation and maintain, kinds of safety design protect screen better. It can operate under the condition that the  temprature that is -20℃-50℃.

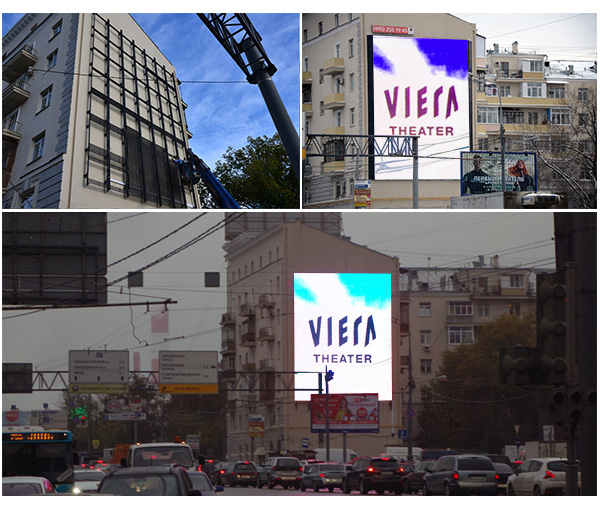

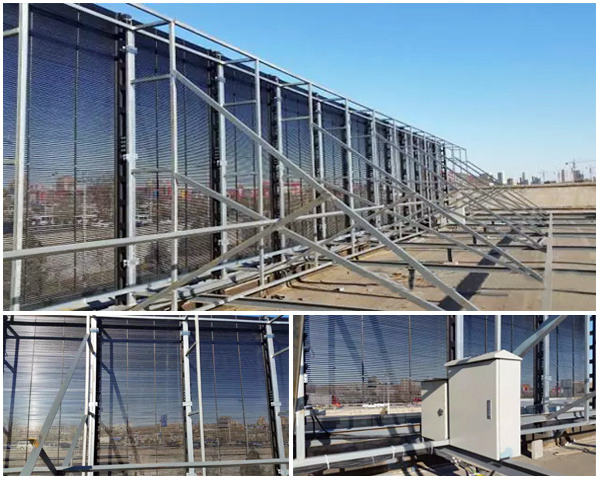

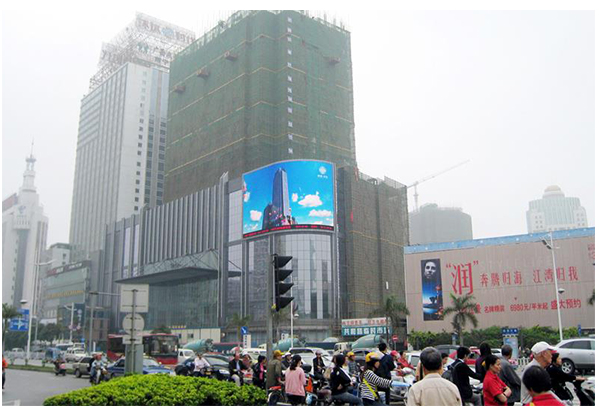

Project Case
