Rental Outdoor LED display
300×213
500x1000mm Outdoor P6.25 LED display for indoor/outdoor even
  PDF:
Jump to :
Features
Top

Higher cost performance Ratio.
Lower maintenance cost .
Combined with the control system which has more than 14bit processing ,effecting a higher gray level.
Red,green and blue LED chips incorporated encapsulation ,better perspective.
Strong adaption to environment.
Much faster to assemble or disassemble it without any tool.
Specification
Top
Pixel Pitch 6.25 mm
Pixel Configuration SMD3535
Environment Outdoor
Pixel Density 25600 Dot/sqm
Module Size 250*250 mm
Module Resolution 40*40 Dots
Cabinet Size 500 mm*1000 mm*70 mm
Cabinet Resolution 80*160 Dots
Driving Method 1/8 scan
Cabinet Weight (kg/pc) 15
Cabinet Material Aluminum Alloy
Viewing Distance >6.25 m
Viewing Angle H140° V140°
Refresh Rate >2000 HZ
Maximum Power Consumption 920 W/m²
Average Power Consumption 320 W/m²
Brightness >5500 nits
Input Voltage AC100-240V/50-60Hz
Life Span 100,000 hours
Working Temperature -20°C ～ 60°C
Working Humidity 10% RH～90% RH
Gray Scale 16 bits
Front Ingress Protection Index IP65
Back Ingress Protection Index IP65

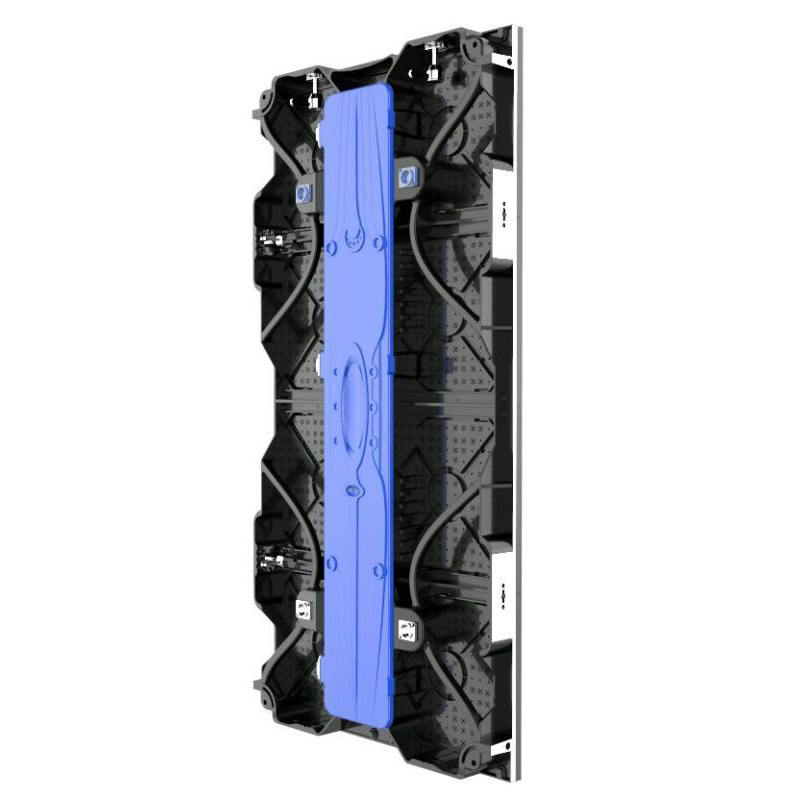

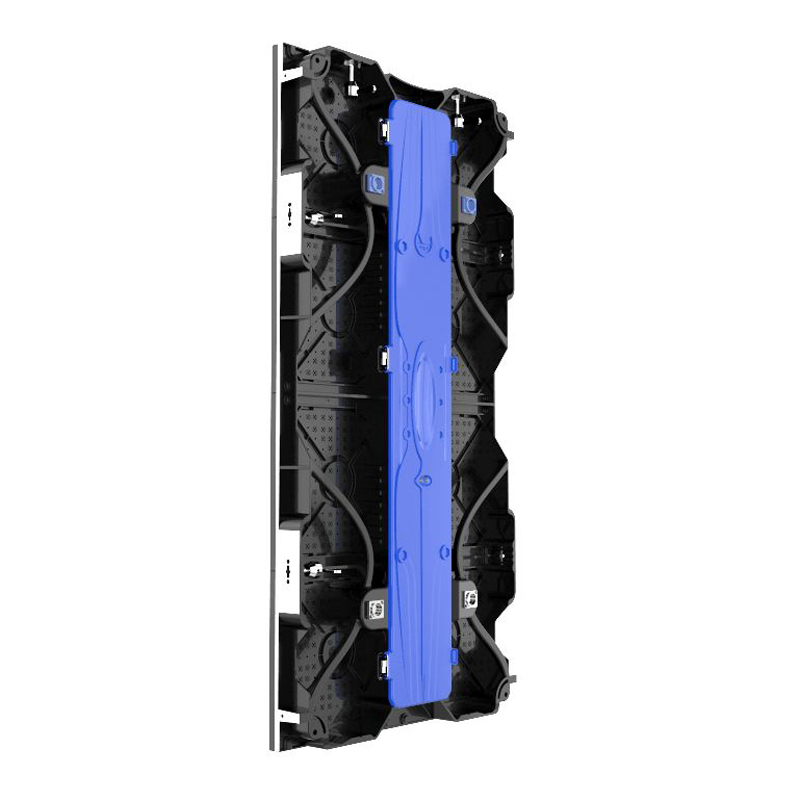

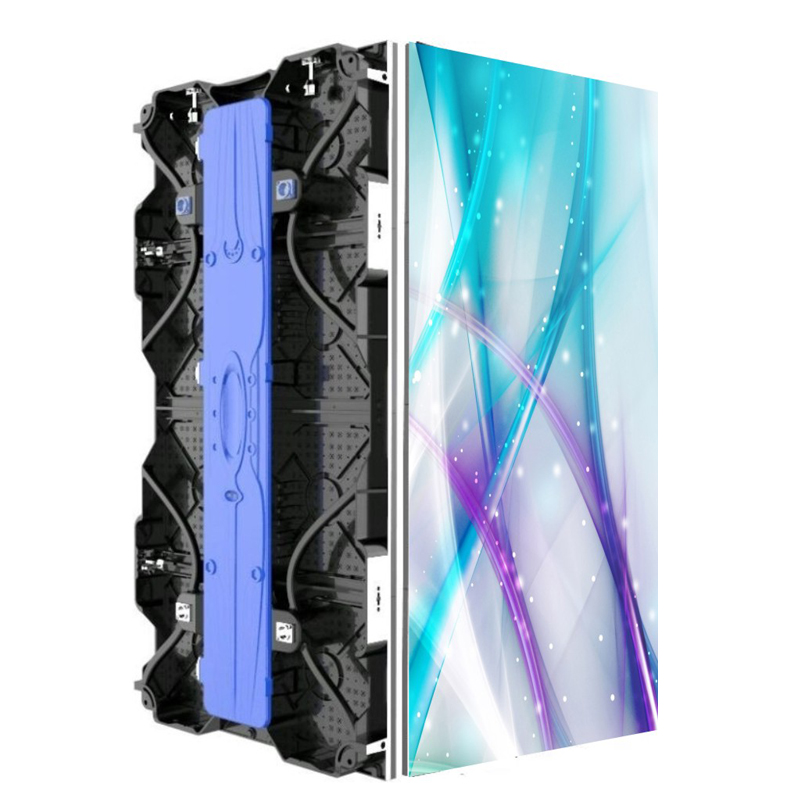

Structure
Top


Project Case
Top

High Brightness Perfect Outdoor Performance



Over 6000cd/㎡ brightness , high definition  image even in the  rainy day or in the strong sunshine. manual and  automatic brightness adjustment available makes  it suitable for any different environment. The best item for outdoor advertising and concert.



The seamless spicing technology brings excellent visual performance



Cutting edge seamless spicing technology ensures a totally seamless display to provide perfect visual performance.

IP65 waterproof for front and rear



Front  and Rear IP65 waterproof grade protect your product better. High quality let your every penny spend worthy.

Outstanding outdoor performance



Fast and easy to setup, saving your labor and time cost.

Price are including all kits



The price of the product is including the cabinet, control system, and flightcases.




Applications

The big LED displays can be used for various applications and at very places, including banks, highways, stadiums, open stages,indoor or outdoor events etc.

-
