Rental Outdoor LED display
300×213
640x640mm Outdoor P5 Mg Aluminum LED display
  PDF:
Features

Easy-to-remove LED panel:

The unique design of cabinet and its lightweight make it easy to carry and transport.
Also, you won't require any tools or expertise to install it.

Specification

Model P5 LED display for indoor/outdoor events
Pixel pitch 5mm
Pixel density 40000 dots /sqm

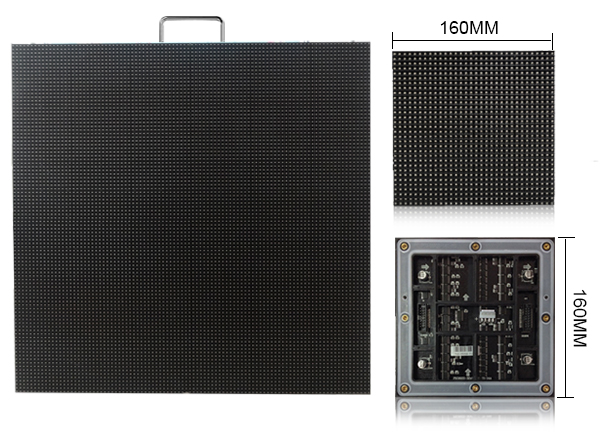

Module size(W*H) 160 mm(width)*160 mm(height)
Module pixels(W*H) 64 dots *32 dots
Pixel configuration 1Red 1Green 1Blue
Drive mode constant current driving 1/8 scan
LED lamp type SMD2727
Cabinet size(W*H*D) 640mm*640mm
Color scale 65,536 degree
View angle(H/V) 140/120 degree
Brightness (White balance) about 6000cd/sqm.
Power consumption(one cabinet) Max: 400W / cabinet , Average: 150W / cabinet
Operating Voltage AC110V±10% or 220V ±10%;   50---60HZ
Net weight 14Kg / cabinet
Operating temperature -30°C----+60°C
Operating humidity 10%-95%RH
Life time ≥100,000hours
MTBF 5,000 hours
Whole Display Flatness ≤0.5mm Juncture
Frame frequency 25-60 Hz/s
Refresh rate ≥2000Hz /s
Control distance 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power  110V/220V±15%  47--63Hz
LED control system LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating system Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protections for outdoor display   IP65
Maintenance way Rear  Access
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

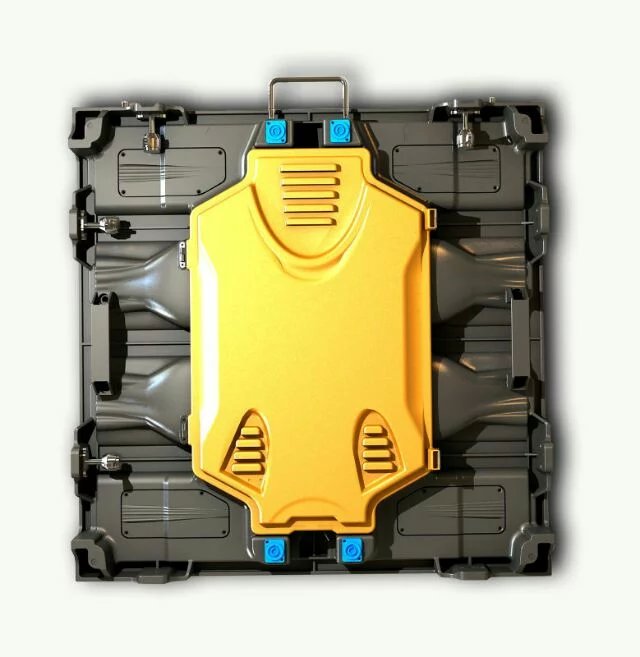

Structure

Standard cabinet dimension

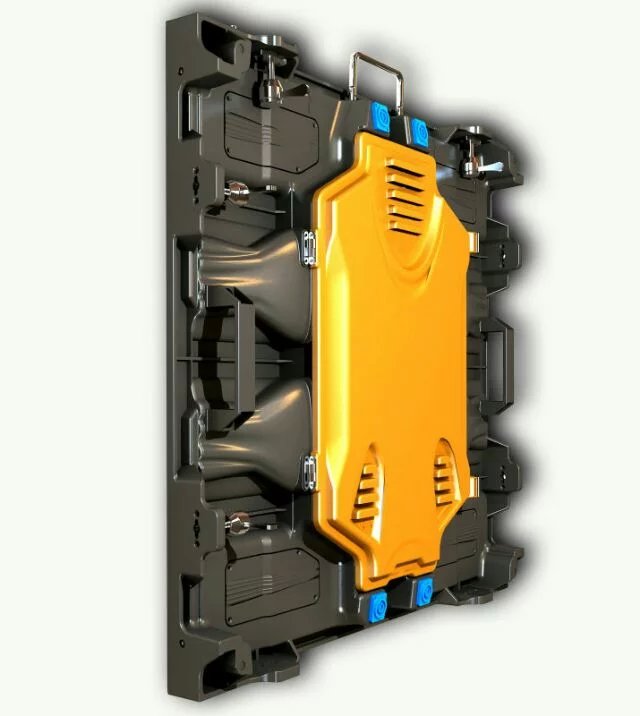

Ultra-lightweight die casting aluminum cabinet adopted quick lock system ensure fast installation and easy to transportation.

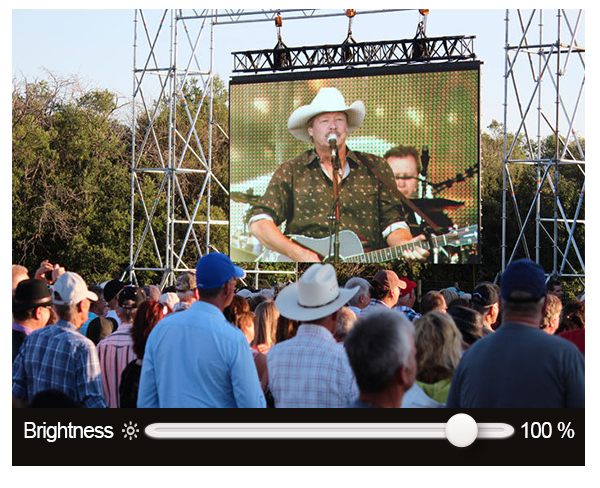

High Brightness Perfect Outdoor Performance



Over 6000cd/㎡ brightness , high definition  image even in the  rainy day or in the strong sunshine. manual and  automatic brightness adjustment available makes  it suitable for any different environment. The best item for outdoor advertising and concert.



The seamless spicing technology brings excellent visual performance



Cutting edge seamless spicing technology ensures a totally seamless display to provide perfect visual performance.

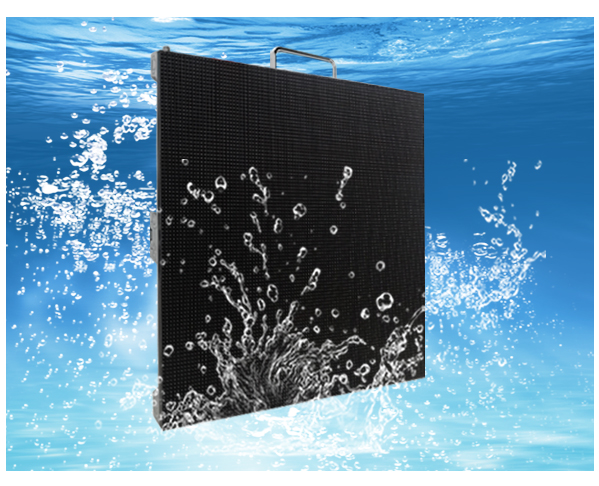

IP65 waterproof for front and rear



Front  and Rear IP65 waterproof grade protect your product better. High quality let your every penny spend worthy.

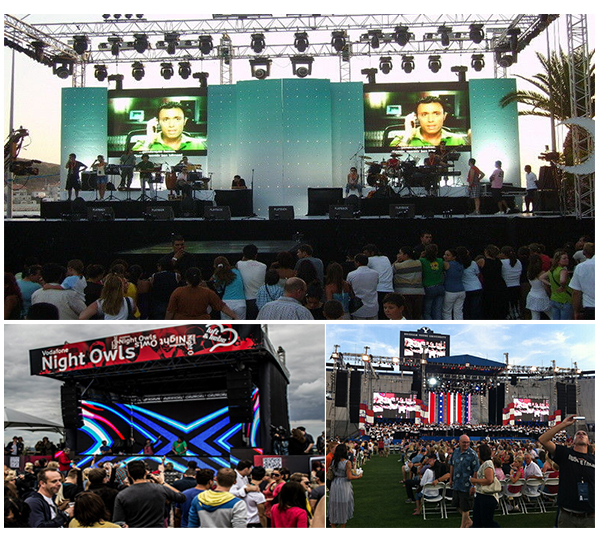

Outstanding outdoor performance



Fast and easy to setup, saving your labor and time cost.

Price are including all kits



The price of the product is including the cabinet, control system, and flightcases.
