Unique Shape LED Display
300×213
Double-sided Outdoor LED Lighting box display
  PDF:
Features
This is a product particularly designed for rental applications thanks to its excellent balancing between cost and resolution. If fact, P10 is more used in rental applications than any other pitches.
It has some great features as:
●Highest resolution for any outdoor applications;
●Energy-efficient version is available;
●Brightness/cost adjustability;
It's good for :
●General rental display in all occasions;
●Automobile trailer display;
●Fixed installation for those outdoor advertising purpose with short viewing distances;
Specification
Model No. P10
Pixel Pitch 10mm
Module Size 320mm×160mm
Module Resolution(pixels) 32*16
Panel Size 960mm×960mm
Panel Resolution(pixels) 96×96
Pixel Configuration(RGB) 1R1G1B 346
Pixel Density(pixels/m2) 10000
Brightness(cd/m2) 5000
Best Viewing Distance(m) 10
Max.Power Consumption(W/m2) 480
Drive Mode Constant driving 1/8
Wavelength R 620-625 G 520-525 B 470-475
Viewing Angle 120°(H)/60°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) ≥60Hz
Display Refresh Rate(Hz) ≥600Hz
Grey Level(colors) 16.7million
Life Span ≥100,000 hours
Working Voltage 220V±15% OR 110V±15%
Video Signal Input RF,S_Video,RGB,RGBHV,YUV,YC,COMPOSITION
Control System LINSN OR DB-STAR

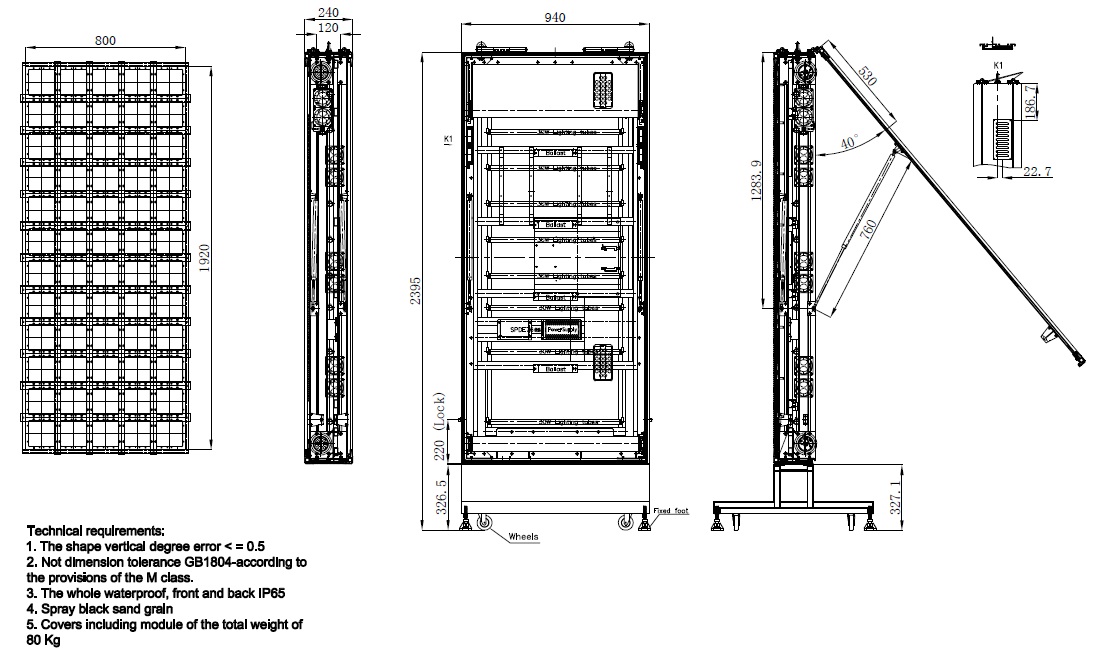

Structure

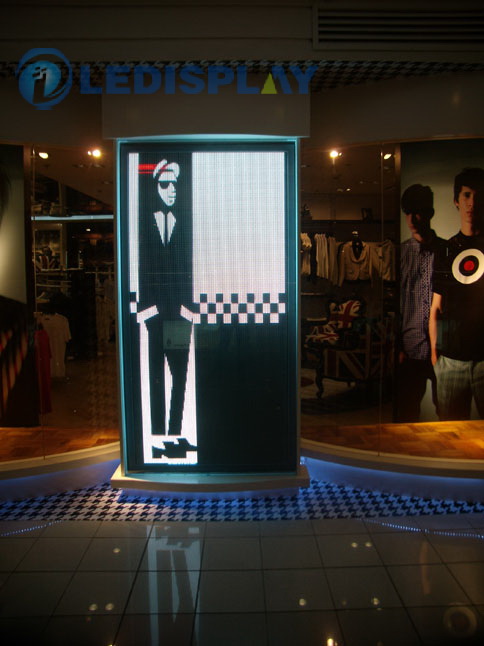

Project Case
