Rental Indoor LED display
300×213

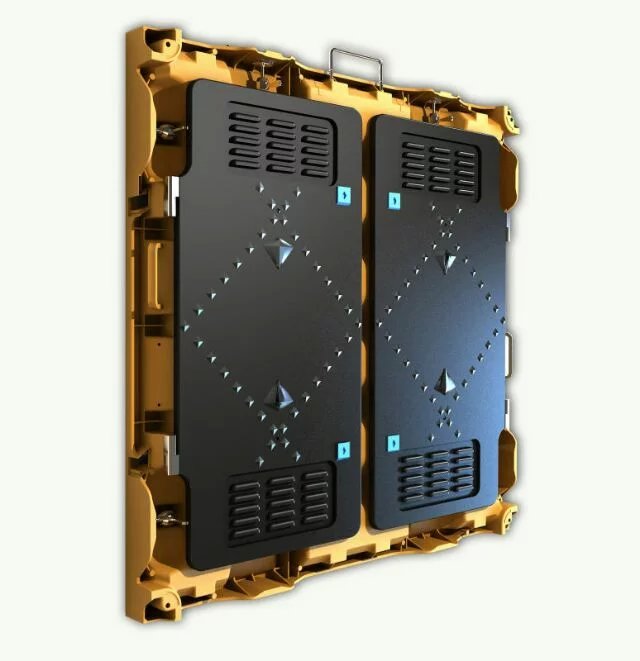

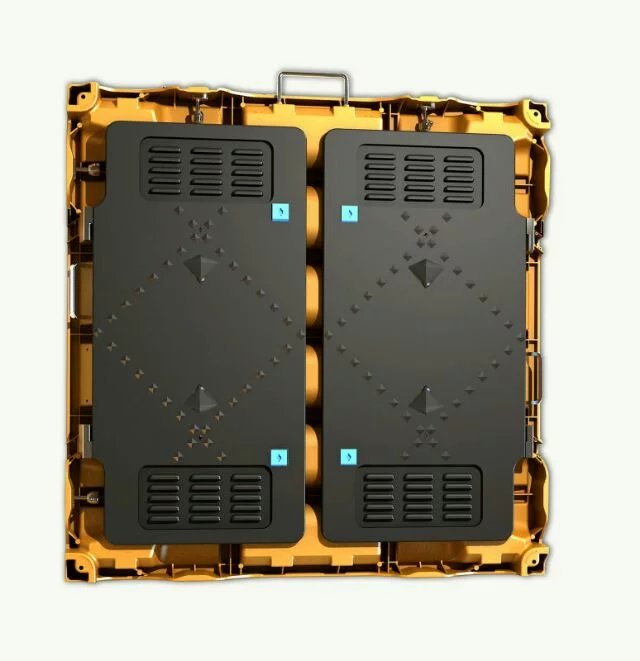

960mmx960mm Indoor P5/P8 Big aluminum Panle LED display
  PDF:
Jump to :
Features
Top

Higher cost performance Ratio.
Lower maintenance cost .
Combined with the control system which has more than 14bit processing ,effecting a higher gray level.
Red,green and blue LED chips incorporated encapsulation ,better perspective.
Strong adaption to environment.
Much faster to assemble or disassemble it without any tool.
Specification
Top
Parameter
Module Pixel Configuration SMD3528
Pixel Pitch 5.0mm
Module Resolution(W×H) 64x32
Module Size(mm) 320x160


Cabinet(Panel) Modue Qty Per Cabinet(W×H) 2x4=8pcs
Cabinet Size(mm) 960x960mm
Area per Cabinet(㎡) 0.9216
Weight of One Cabinet(Kg) 20kgs
Pixel Density(pixel/㎡) 40000
Cabinet Flatness(mm) ≤0.2
Cabinet Material Die-casting Cabinet
Optical Parameters Brightness Calibration by Per Dot  to 60
Refresh Frequency(Hz) ≥1200
Brightness(Nits/SQM) ≥2000
Maximum Power Consumption  512W/M2
Average Power
Consumption		 205W/M2
Best Viewing Distance(m) 5-100m
Lifetime(Hours) ≥100,000
Working Temperature(℃) -20 ~ + 45
Stored Temperature(℃) -30 ~ + 60
Working Humidity(RH) 10 — 90%(no dew formation)
Stored Humidity(RH) 10 — 95%(no dew formation)
Waterproof NO
Protection Grade  IP40
