Fixed Indoor LED display
300×213
Fixed Indoor P3 HD LED Display
  PDF:
Jump to :
Features
Top
1.Nice color uniformity, a good solution to mosaic, excellent consistency.
2. Real pixel display, clear, exquisite and real display effect for both text and images.
3. Horizontal and vertical viewing angle up to 120 degrees, within angle range, image has no distortion and color cast.
4. Easy to maintain, available for single-point and single-lamp maintenance, low repair costs, ingress protection grade IP40.
Specification
Top
Pixel Pitch 3 mm
Pixel Density（m²） 111111
Pixel Composition 3-in-1 SMD
Cabinet Size 576 mm*576 mm*108 mm
Cabinet Resolution 256*256= 65536
Number of Modules(One Cabinet) 4*4= 16
Cabinet Material Iron
Number of Power(One Cabinet) 5 V/60 A/6
Cabinet Net Weight 50 kg/Sq. m.
Cabinet Gross Weight 56 kg/Sq. m.
Package Size 656 mm*756 mm*316 mm
Module Resolution 64*32
Module Size 192*96*15（mm*mm*mm）
Module Weight 0.13 kg
Power Consumption (Single Module)） 5 V, 86 W
Brightness 2000 cd /Sq. m.
Gray Level 16384
Color 16700000
The Best Viewing Angle H: 140°, V: 140°
The Best Viewing Distance 3 m~60 m
Scan Mode 1/16; Real
Refresh Rate (Max) 4000 Hz
Input Voltage 110 V/60 Hz, 220 V/50 Hz;
Max Power Consumption 2310 W/Sq. m.
Average Power Consumption 1390 W/Sq. m.
Lifespan 50000 h
Operating Temperature -20°C~+50°C
Operating Humidity Range 10%RH ~ 90%RH
Front Ingress Protection Index IP 40
Back Ingress Protection Index IP 40

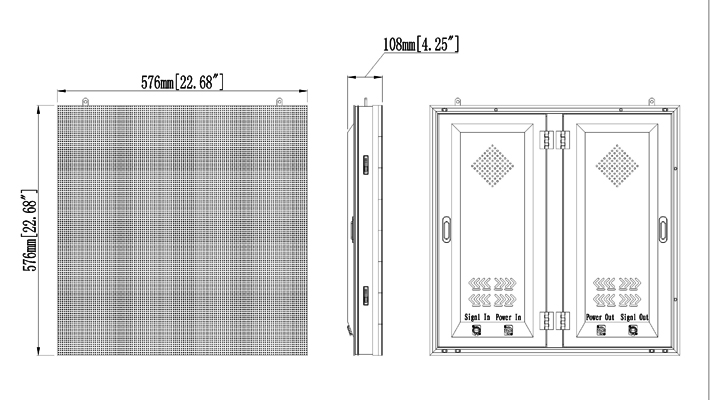

Structure
Top

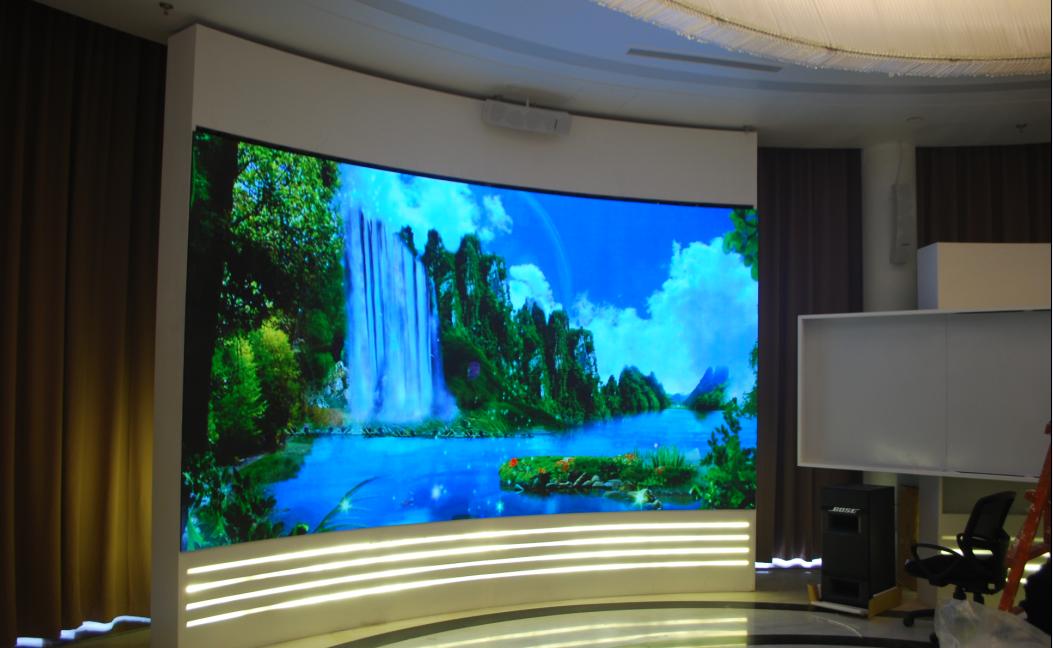

Project Case
Top
