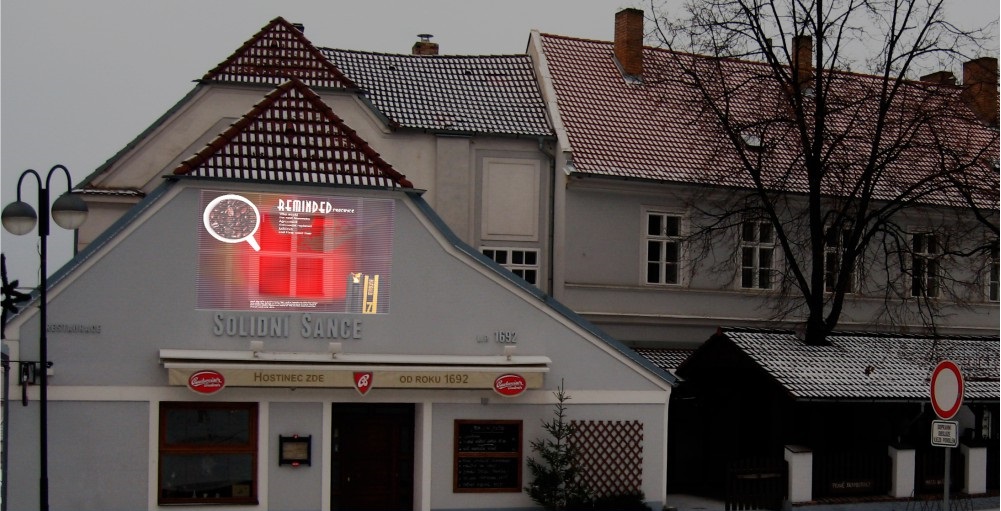

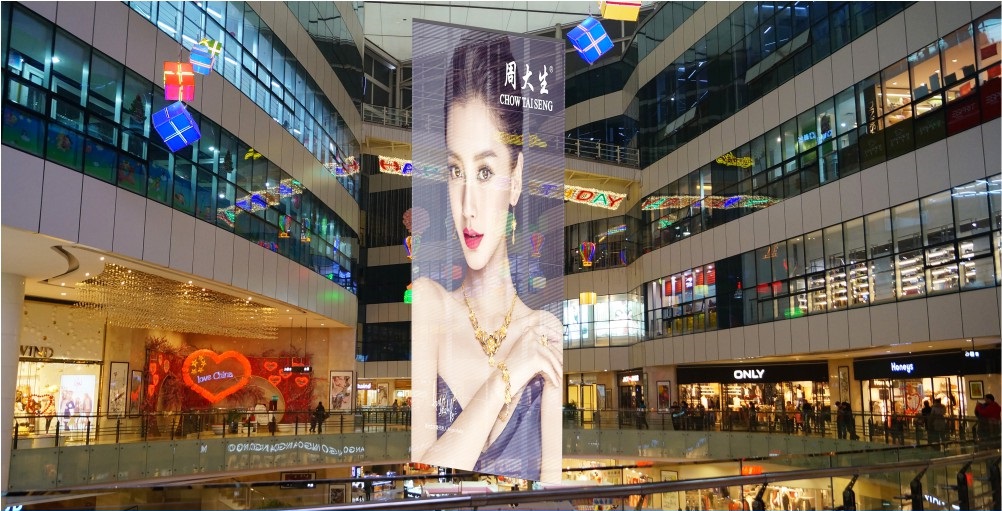

Our transparent outdoor LED Curtain, widely used as the exterior walls of buildings, stadiums, landscapes and billboard etc.
| 1: LED Lamp |
| LED type:DIP 570 |
| Wavelength |
| R：625-630nm |
| G：515-520nm |
| B：465-470nm |
| Brightness |
| R:550-700mcd |
| G:1800-2600mcd |
| B:300-500mcd |

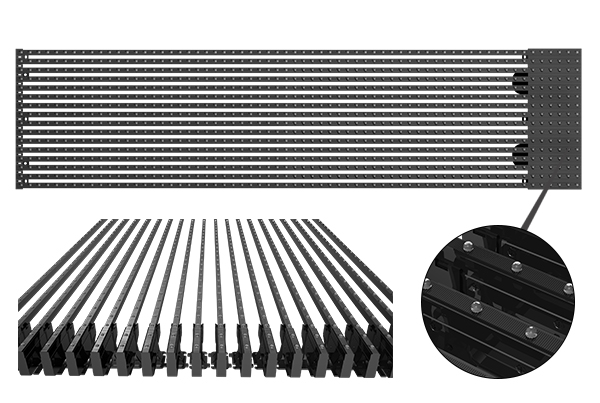

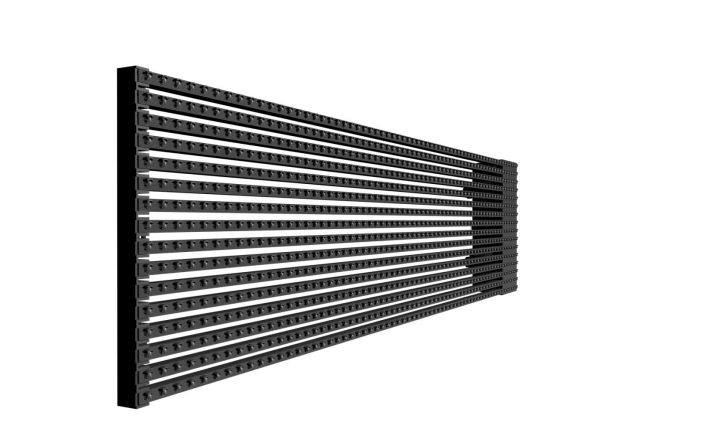

| Ⅱ . Specification for one LED Panel | |
| Panel Size | 1500*250*70mm |
| Pitch | 15.625mm |
| Pixel Density(dots/SQM) | 4096 |
| Panel Resolution(dots) | 96*16 |
| Transparency | ≥45％ |
| Brightness | ≥7000cd/m2 |
| Weight | 16Kg/m2 |
| Max Power Consumption | 400W/m2 |
| Orientation of LED Bar | Vertical/Horizontal |
| View Angle | H120°V60° |
| IP Rate | IP66 |
| Power Supplies | AC100-240V 50-60Hz |
| Continuous operation time | ≥72H |
| MTBF(HRS) | ≥10000 |
| Luminous Decay(3years) | ≤15％ |
| Operation Environment | Temp:-20℃∽+60℃ |
| Huminity:10%-90% | |
| Color Temprature | 4500-25000K Ajustable |
| Frame-Changing Frequency | ≥60 Hz |
| Refresh Rate | ≥3000Hz |
| Spot-spot correction | Support |
| Control Mode | Computer,real time monitor |
| Brightness Adjust | 256 level manual/Auto |
| Input Signal | DVI/VGA、RGBHV Composite Video signal S-VIDEO |
| YpbPr(HDTV) | |
| Hozanrical Flatness | H＜1mm/Sqm |
| Vertical Flatness | V＜1mm/sqm |
