STADIUM LED DISPLAYS
300×213
P12.5 Perimeter Outdoor SMD Sports LED display
  PDF:
Jump to :
Features
Top

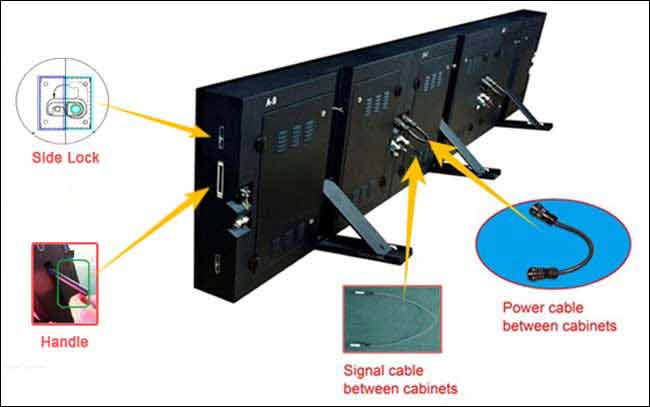

1.  Convenient to install and disassemble
Our cabinets feature simple designs, making them easy-to-install and disassemble. The cabinets include interlo-cks, as well as external signal and power sockets.



2. Adjustable inclination angle
Generally, the LED perimeter banner display is placed vertically and the inclination angle is adjustable for the best possible viewing and camera shooting angles.



3. Automatic backup system
Our LED displays could utilize two computers to ensure interruption-free display of images and videos. For instance, if one unit was to turn off due to technical issues, the other unit will automati-cally act as a backup solution.

4. All weather designs
With an IP65 rating, our cabinets offer ventilation and protection from rain or water damage.

5.  High refresh rates
With high refresh rates, our products can display flicker-free video images-including live video feeds.

6.  Stability
a.) Connectors for power cables ensure stability of the power supply and voltage.
b.) Our Swiss-made cable connectors guarantee perfect signal communication.

7. Impact resistance
Specially designed soft module masks on our pro-ducts protect players from injury and offers prote-ction to the unit itself.

8. Software
Specialized sports software is designed for edit-ing and playing advertisement content.
Specification
Top
Pixel Pitch 12.5mm
Type SMD
Chip parameters Red (625-630nm) IV:(800-1000mcd)
Chip parameters Green (515-520nm) IV:(2000-2500mcd)
Chip parameters Blue (465-470nm) IV:(400-600mcd)
Arrangement 2 / pixel
Cabinet Size 1000×1000mm
Pixel Density 6400 Dots/sqm
Cabinet Resolution 512×512 Dots
Transparency >70%
Brightness >7000cd/sqm
Weight 55kg/sqm
Max.Power Consumption 400 w/sqm
Bar Arrangment Horizontal / Vertical
Viewing Angle (H/V) 120(Horizontal), 60(Vertical)
Protection Level(front/back) IP66
Color Temperature Adjustable 4500-25000k
Operation Power AC110-220V±10%, 50/60Hz
Continuous working time >72H
MTBF >10000H
Pixel runaway rate 1/10000(the industry standard)
Operating Temperature -40OC-80OC
Operating Humidity 10%-95%
Gray Scale 16bit
Frame rate >60Hz
Refresh Rate >3000Hz
Correction Support by-point correction
PC Operating System Microsoft Windows 7, XP and Vista
Communication Type Net cable; 3G, WIFI(Sold separately)
Software Nova Studio(HSTV-Nova)
Language Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Inputs DVI, HDMI


Structure
Top

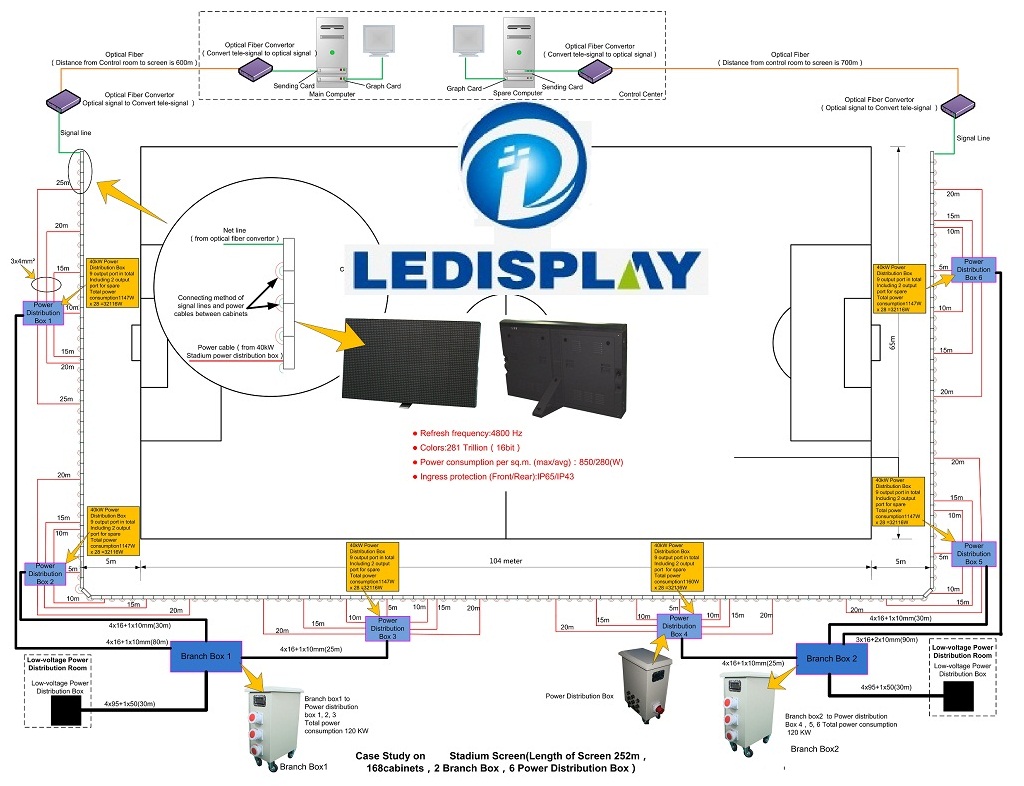

Project Case
