Fixed Indoor LED display
300×213

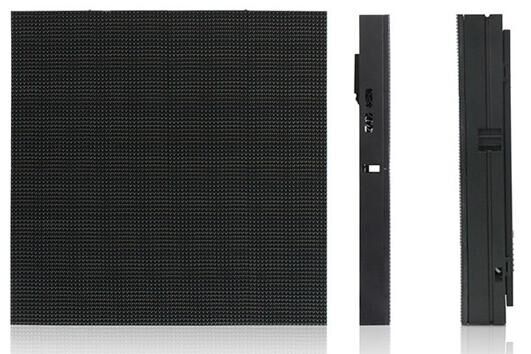

Fixed Indoor P6 HD LED Display
  PDF:
Jump to :
Features
Top
1.Nice color uniformity, a good solution to mosaic, excellent consistency.
2. Real pixel display, clear, exquisite and real display effect for both text and images.
3. Horizontal and vertical viewing angle up to 120 degrees, within angle range, image has no distortion and color cast.
4. Easy to maintain, available for single-point and single-lamp maintenance, low repair costs, ingress protection grade IP40.
Specification
Top
Pixel Pitch 6 mm
Pixel Density（m²） 27777
Pixel Composition 3-in-1 SMD
Cabinet Size 768 mm*768 mm*108 mm
Cabinet Resolution 128*128 = 16384
Number of Modules(One Cabinet) 4×8= 32
Cabinet Material Iron
Number of Power(One Cabinet) 5 V/60 A/2
Cabinet Net Weight 52 kg/Sq. m.
Cabinet Gross Weight 57 kg/Sq. m.
Package Size(Flight Case) 848 mm*948 mm*316 mm
Red SMD 3528; 625 nm, 350 mcd
Green SMD 3528; 525 nm, 700 mcd
Blue SMD 3528; 465 nm, 150 mcd
Module Resolution 32*16
Module Size 192*96*15（mm*mm*mm）
Module Weight 0.14 kg
Power Consumption (Single Module) 5 V, 11 W
Brightness 1500 cd /Sq. m.
Gray Level 4096
Color 16700000
The Best Viewing Angle H: 120°, V:120°
The Best Viewing Distance 6 m~150 m
Scan Mode 1/16; Real
Refresh Rate (Max) 2000 Hz
Input Voltage 110 V/60 Hz, 220 V/50 Hz;
Max Power Consumption 580 W/Sq. m.
Average Power Consumption 350 W/Sq. m.
Lifespan 50000 h
Operating Temperature -20°C~+50°C
Operating Humidity Range 10%RH ~ 90%RH
Front Ingress Protection Index IP 40
Back Ingress Protection Index IP 40

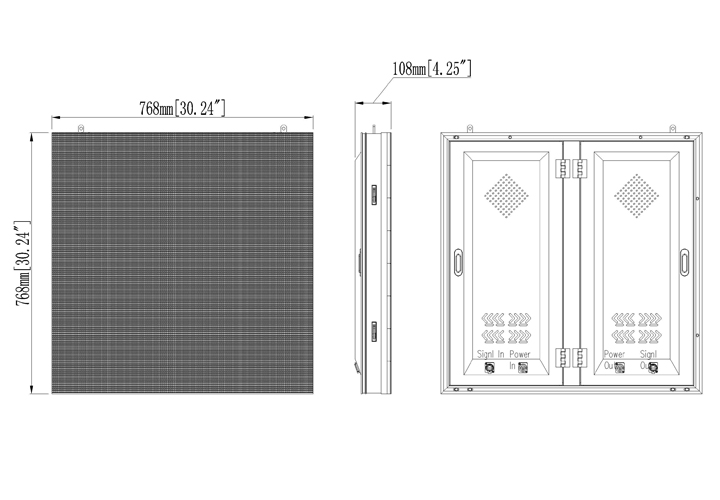

Structure
Top

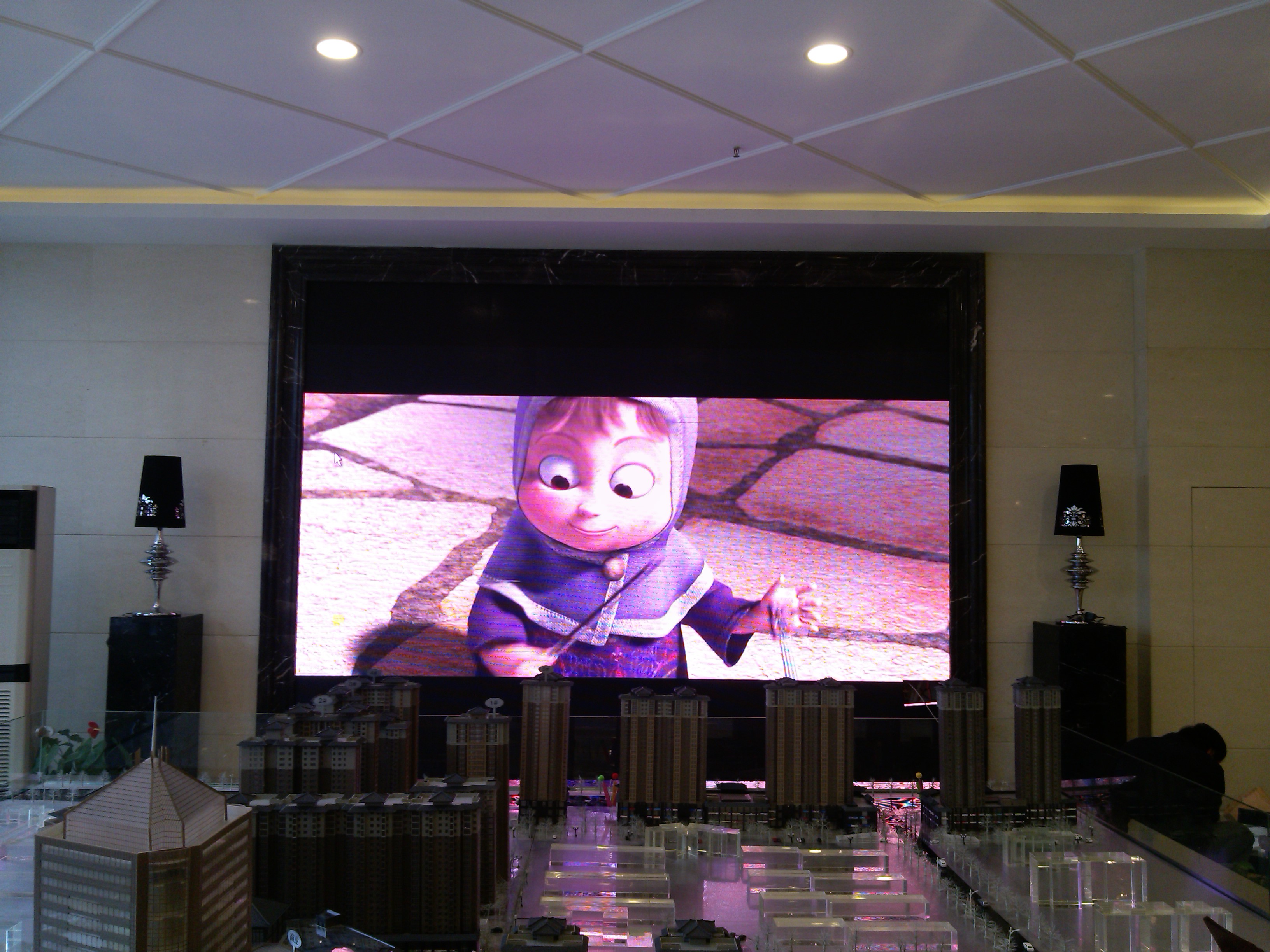

Project Case
